Kubernetes

What’s the point of Kubernetes?

Pithy

K8s is a way to keep your docker containers up.

If the containers become unhealthy, k8s can take them out behind the barn and shoot them, then spin up another container(s) automatically.
It does a bunch of other cool stuff too, like load balancing and rolling deployments too.

Principals

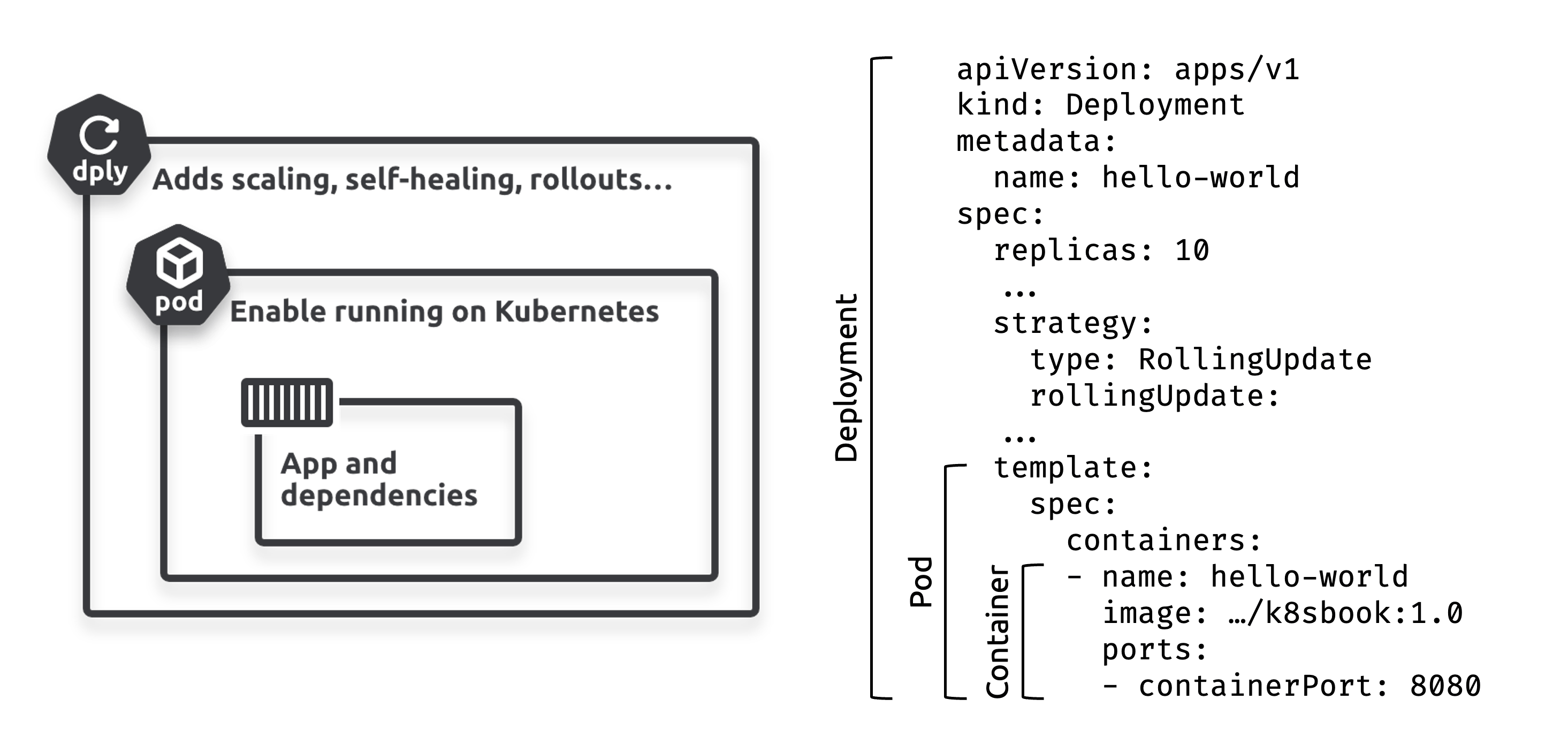

• The container wraps the app and provides dependencies
• The Pod wraps the container so it can run on Kubernetes
• The Deployment wraps the Pod and adds self-healing, scaling and more

Pods

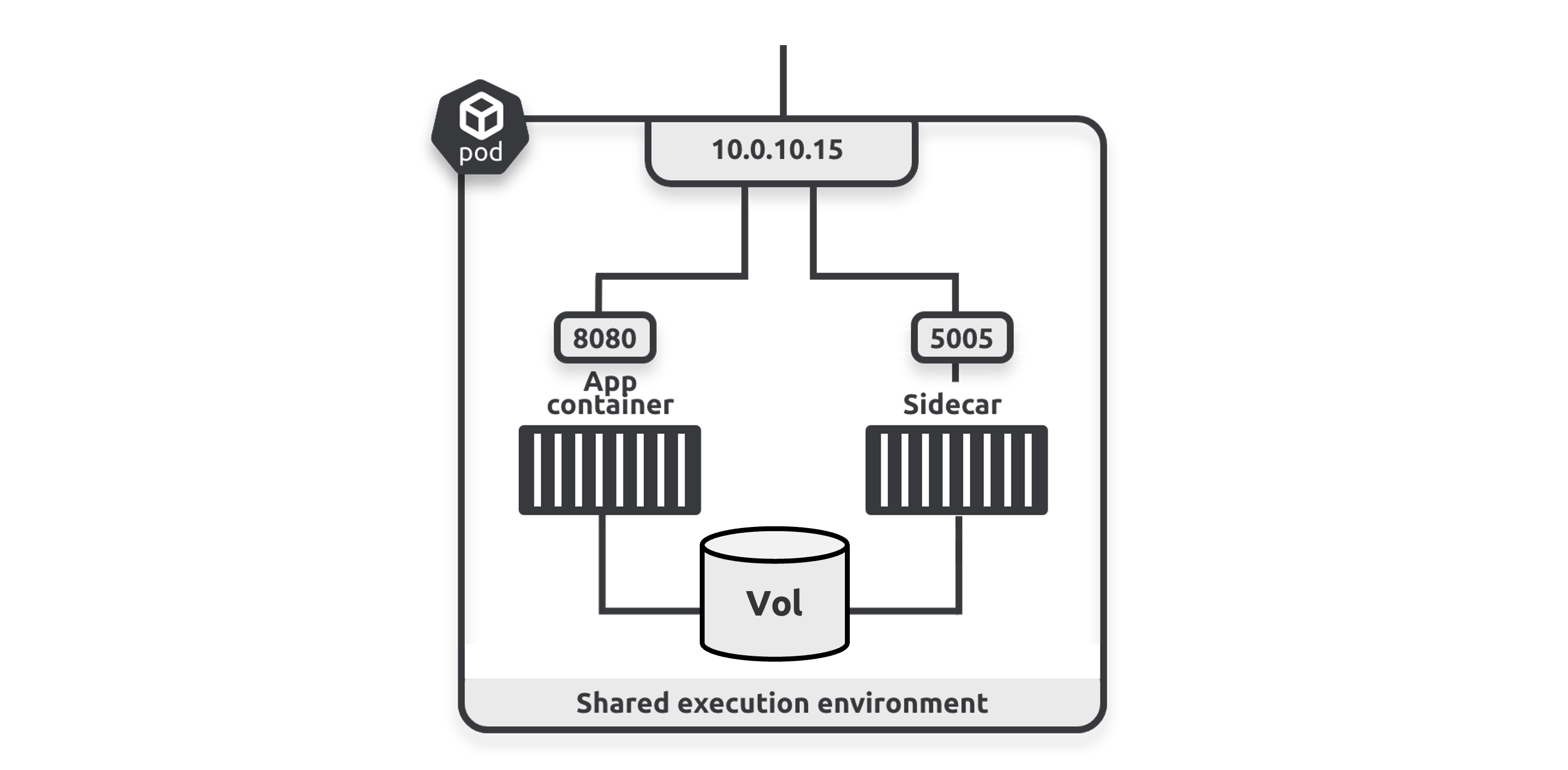

All containers in the same Pod share the Pod’s execution environment:

• Shared filesystem and volumes (mnt namespace)
• Shared network stack (net namespace)
• Shared memory (IPC namespace)
• Shared process tree (pid namespace)
• Shared hostname (uts namespace)

• Other apps and clients access containers via the Pod’s IP address
• The main app container is available on port 8080 and the sidecar on port 5005
• Containers use the Pod’s localhost adapter to communicate inside the Pod

Multi-Container Pods

spec:
  initContainers:
    image: busybox:1.28.4
  containers:
    image: nigelpoulton/web-app:1.0
  initContainers:
  - name: ctr-sync
    restartPolicy: Always # <- makes it a sidecar

Init containers run once before the main container - useful for one-time setup like cloning a repo.

Sidecars run alongside the main container:

• Start before the main container
• Keep running alongside the main container
• Terminate after the main container

Resource Requests/Limits

• Requests - minimums used for scheduling
• Limits - maximums enforced by kubelet

Pods are never allowed to use more than their limits.

resources:
  requests:
    cpu: 0.5
    memory: 256Mi
  limits:
    cpu: 1.0
    memory: 512Mi

Commands

# deploy
kubectl apply -f initpod.yml

# delete
kubectl delete pod [podname...]
kubectl delete -f [.yml files...]

# read
kubectl get pods
kubectl get pods -o wide
kubectl get pods -o yaml
kubectl describe pod hello-pod
kubectl describe pod hello-pod --container [container_name]

# interact
kubectl exec hello-pod -- ps
kubectl exec hello-pod --container [container_name] -- ps
kubectl exec -it hello-pod -- sh
    env

kubectl explain pod.spec.restartPolicy

Namespaces

Divide a cluster for resource and accounting purposes. Each namespace can have its own users, RBAC rules, resource quotas and policies.

Note

Not a strong isolation boundary, don’t use with multiple external clients.

If no namespace is provided k8s deploys to the default namespace.

apiVersion: v1
kind: Pod
metadata:
  namespace: shield
  name: triskelion
  labels:
    env: marvel
spec:
  containers:
  - image: nigelpoulton/k8sbook:shield-01
    name: bus-ctr

DNS

# /etc/resolv.conf
search dev.svc.cluster.local svc.cluster.local cluster.local pawney.net
nameserver 10.96.0.10
options ndots:5

root@jump:/# curl ent:8080
Hello from the DEV Namespace!

root@jump:/# curl ent.prod.svc.cluster.local:8080
Hello from the PROD Namespace!

Question

Why does ent default to dev, but prod requires explicit naming?

Answer

ndots:5 means if the request has fewer than 5 dots, the resolver appends each search domain in order. Since dev is first, ent.dev.svc.cluster.local matches first.

dns_req := ent
ndots := 5
domains_to_append := []String{"dev.svc.cluster.local, svc.cluster.local, cluster.local"}

if numOfDots(dns_req) < ndots {
    for _, domain := range domains_to_append {
        sendDNSRequest(dns_req + domain)
    }
} else {
    sendDNSRequest(dns_res)
}

Commands

kubectl get namespaces
kubectl get ns
kubectl get pods -n shield
kubectl get svc --namespace shield
kubectl get all -n dev
kubectl delete ns shield

# set default namespace
kubectl config set-context --current --namespace shield
kubectl config set-context --current --namespace default

# troubleshooting pod with networking tools
kubectl run -it dnsutils \\
  --image registry.k8s.io/e2e-test-images/jessie-dnsutils:1.7
kubectl exec -it dnsutils -- bash

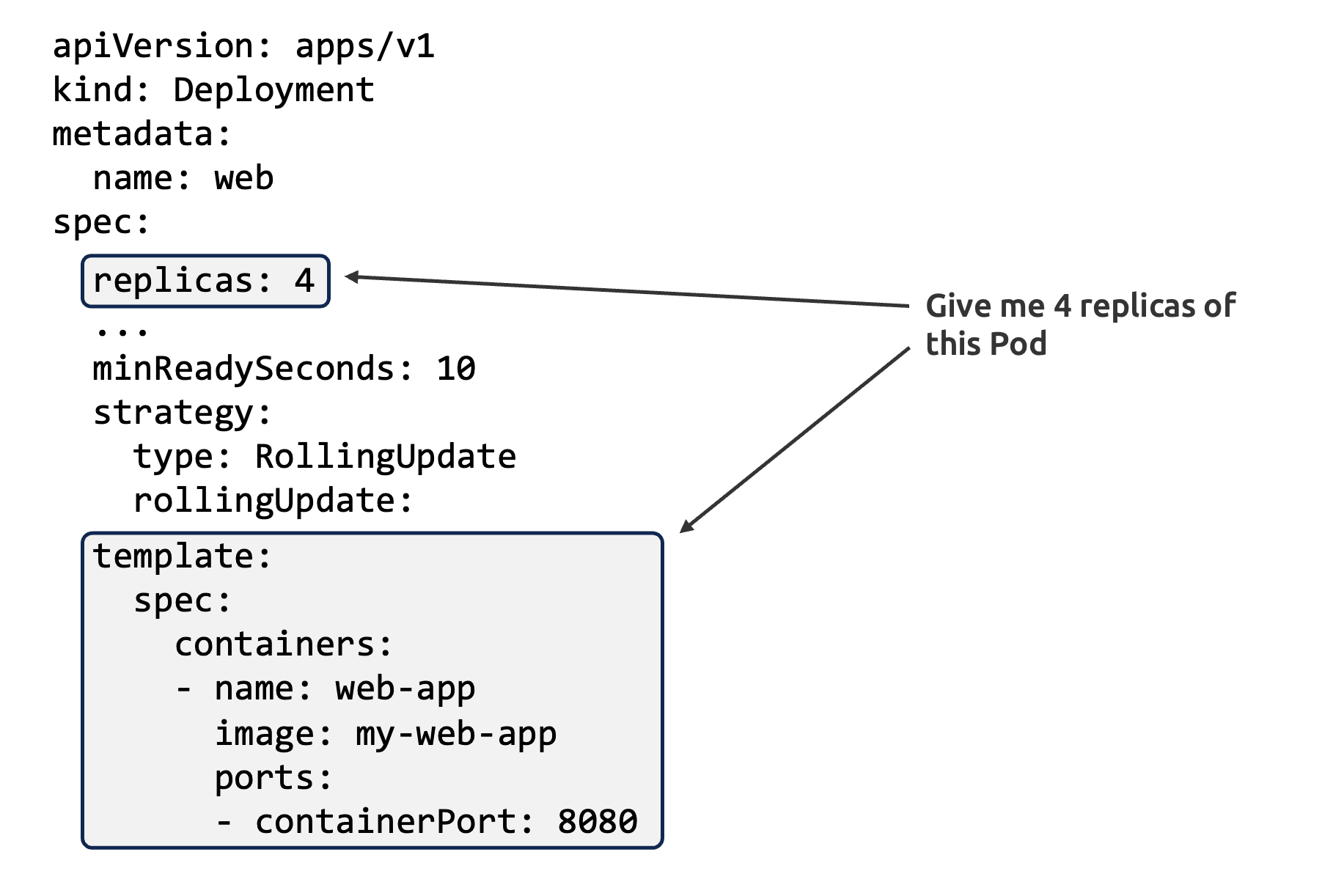

Deployments

Anonymous

“You write the app, containerize it and define it as a Pod. However, before sending the Pod to Kubernetes, you wrap it in a Deployment so it gets the resiliency, scaling and update capabilities.”

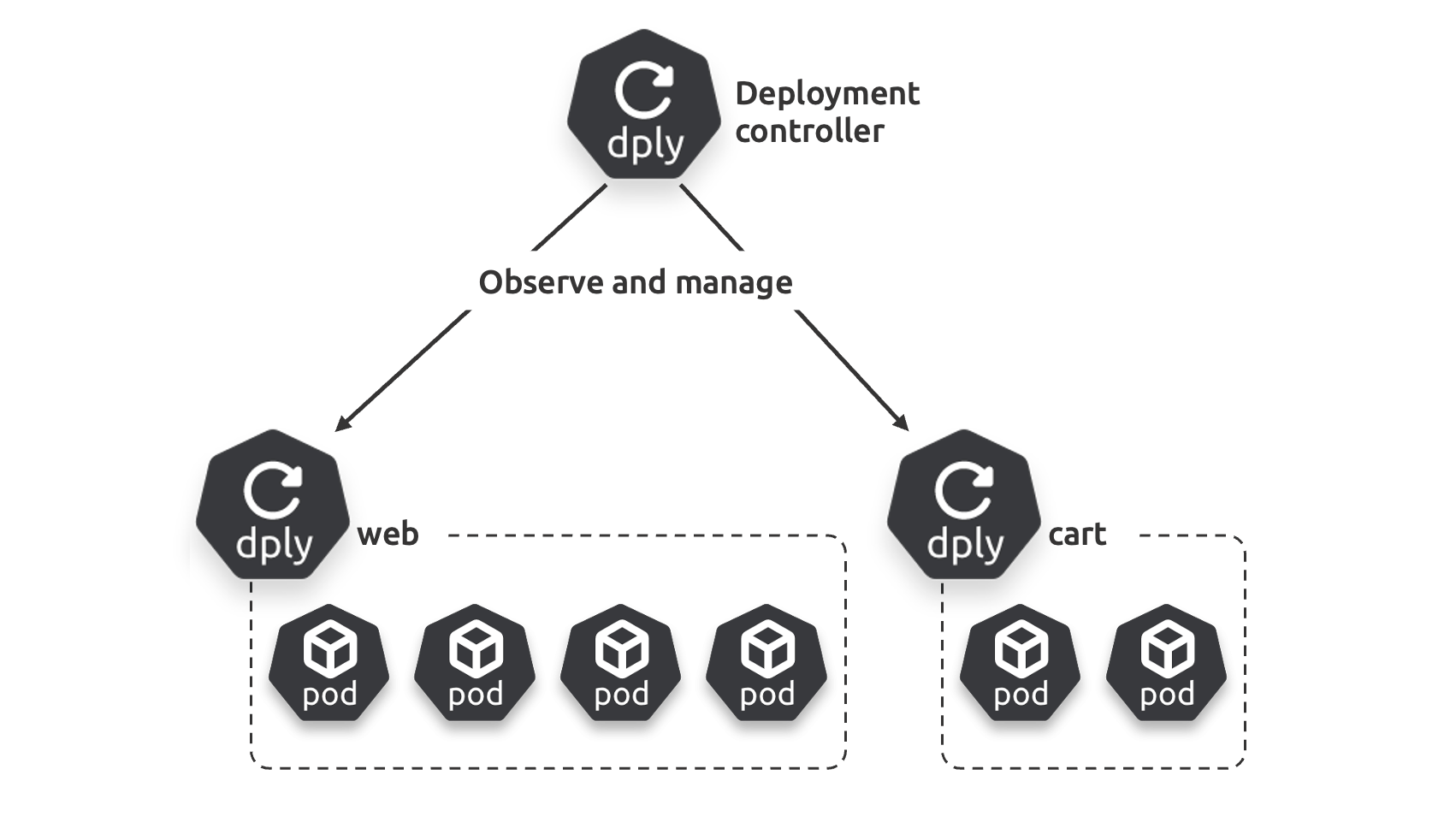

Every Deployment manages one or more identical Pods.

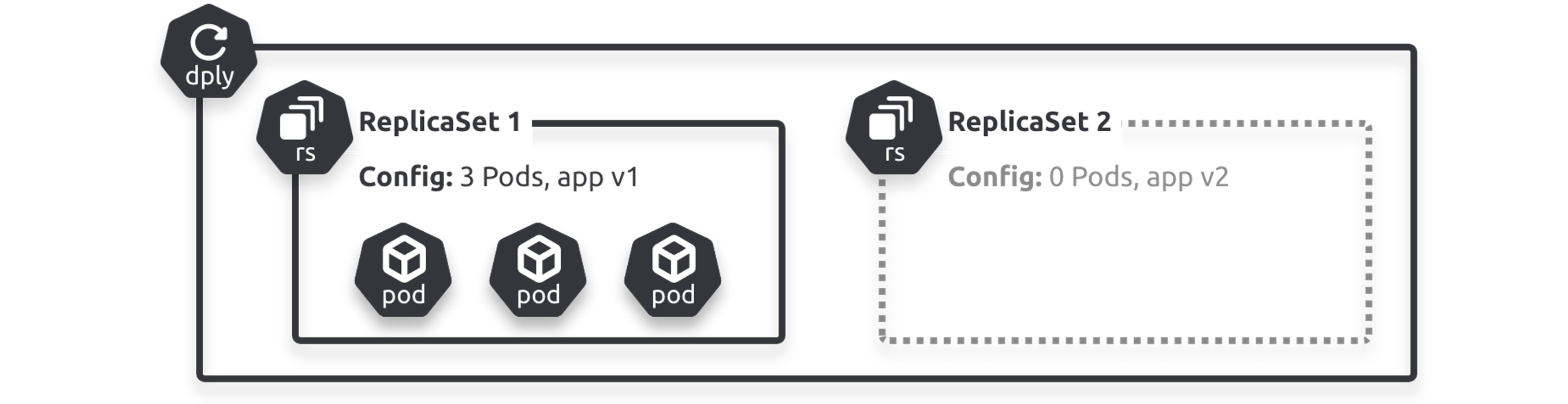

Rollouts

Zero-downtime update process:

1. Update Deployment YAML with new Pod spec
2. Observed state (5 old Pods) no longer matches desired state (5 new Pods)

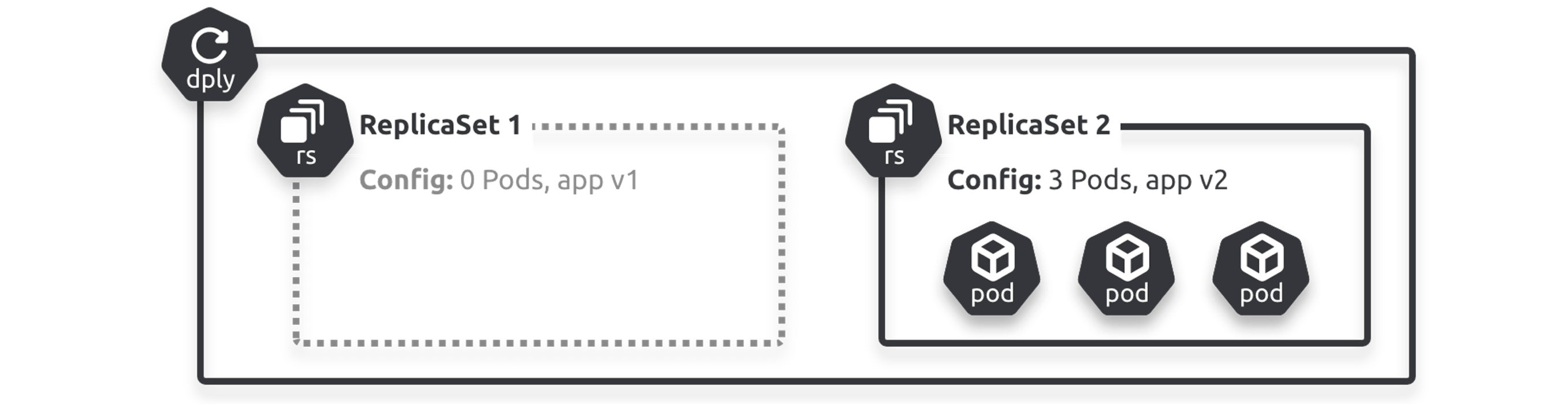

3. Deployment controller creates a new ReplicaSet for the new version
4. New ReplicaSet scales up while old one scales down

Rollbacks

Rollbacks reverse the rollout process.

Commands

kubectl get deploy hello-deploy
kubectl get rs

kubectl scale deploy hello-deploy --replicas 5
kubectl apply -f deploy.yml

kubectl rollout status deployment hello-deploy
kubectl rollout pause deploy hello-deploy
kubectl rollout resume deploy hello-deploy
kubectl rollout history deployment hello-deploy
kubectl rollout undo deployment hello-deploy --to-revision=1

Services

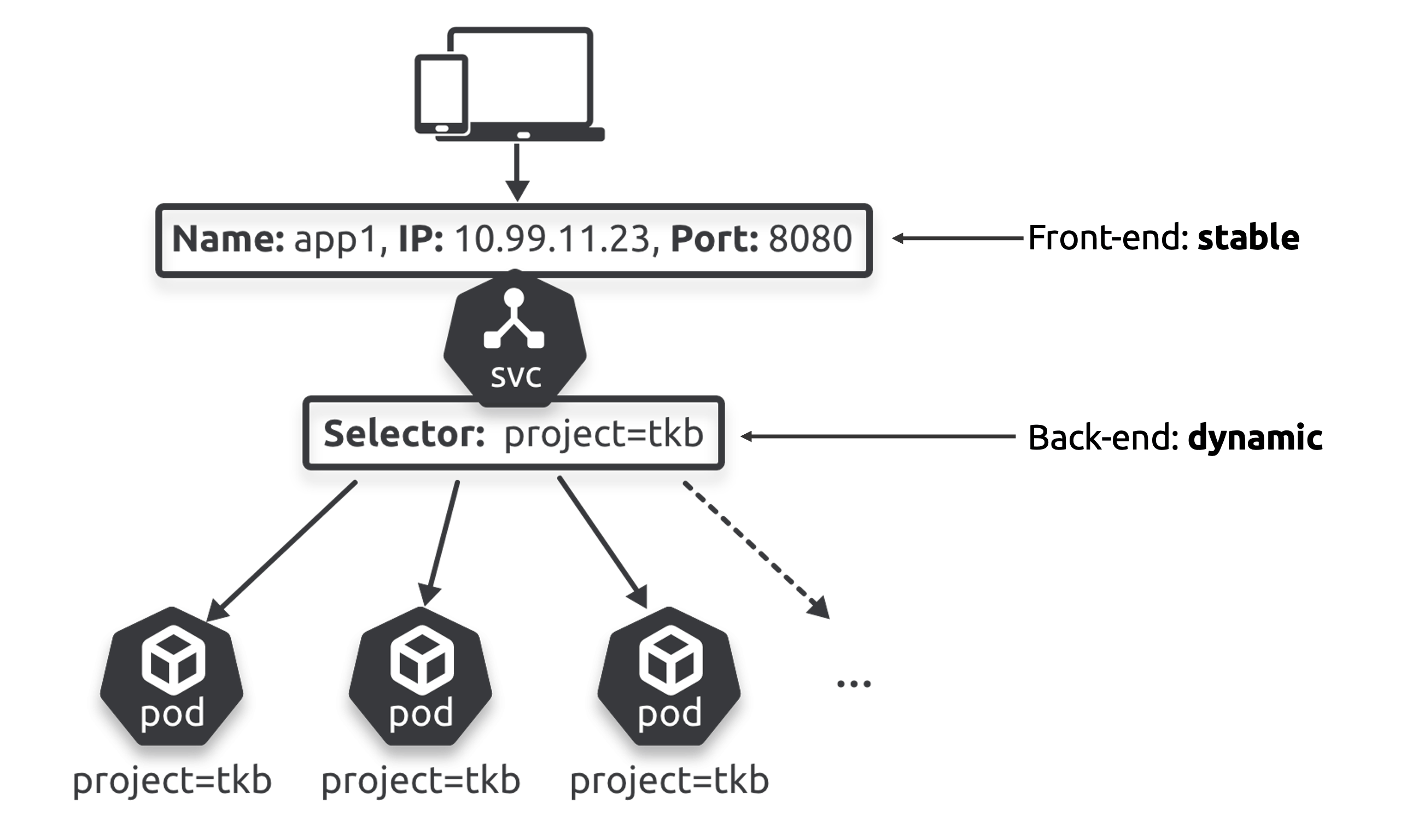

Pods are not reliable - Service objects sit in front of Pods and expose them via a stable DNS name, IP and port.

• The front end (DNS name, IP, port) never changes
• The back end is a label selector that routes to healthy Pods with matching labels

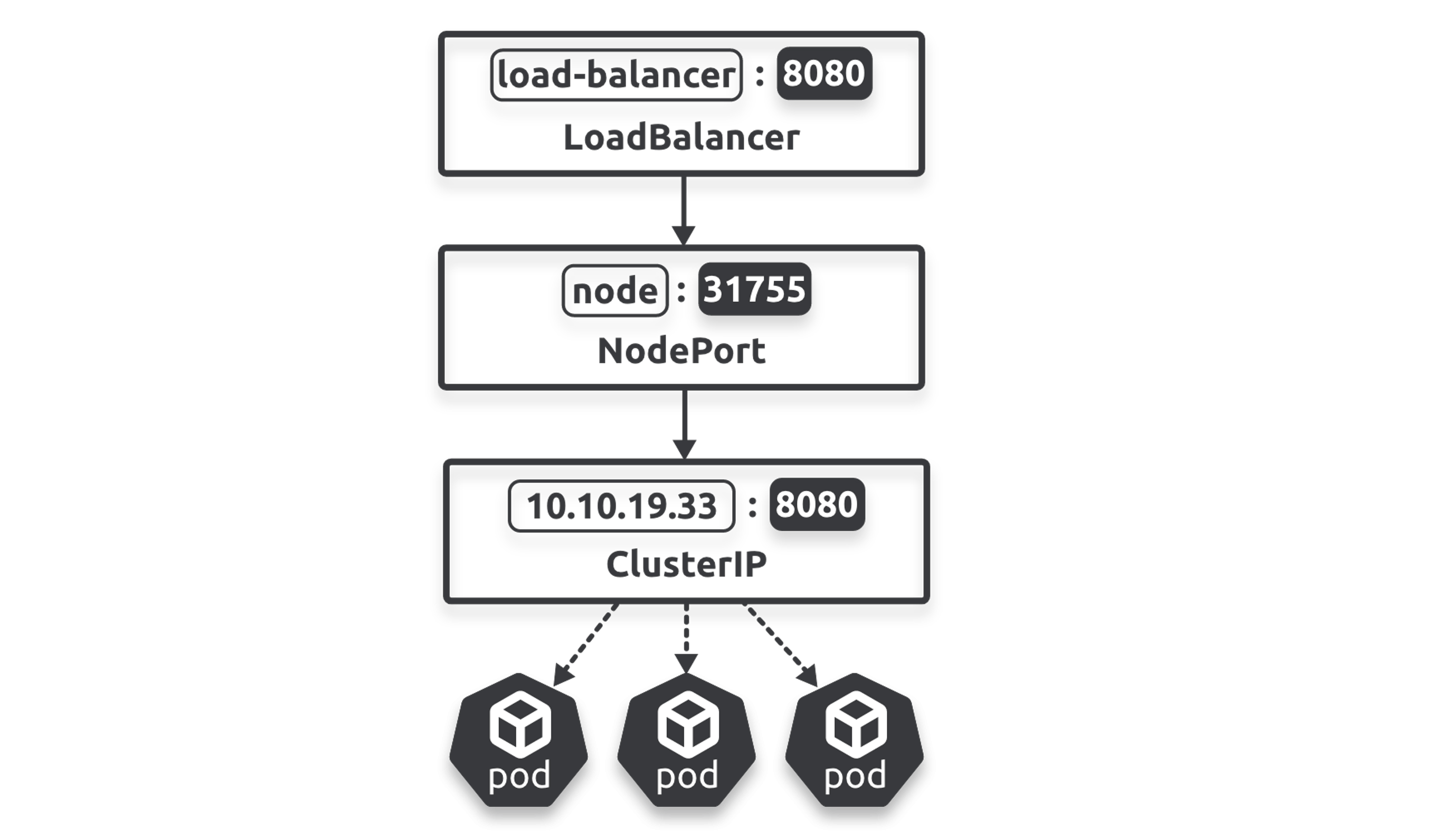

Types

• ClusterIP - stable endpoint on the internal Pod network
• NodePort - builds on ClusterIP, allows external access via a port on every cluster node
• LoadBalancer - builds on NodePort, integrates with cloud load balancers

kubectl describe svc svc-test
# Type:       LoadBalancer
# Port:       8080/TCP
# TargetPort: 8080/TCP
# NodePort:   31882/TCP
# Endpoints:  10.244.0.59:8080,10.244.0.62:8080,...

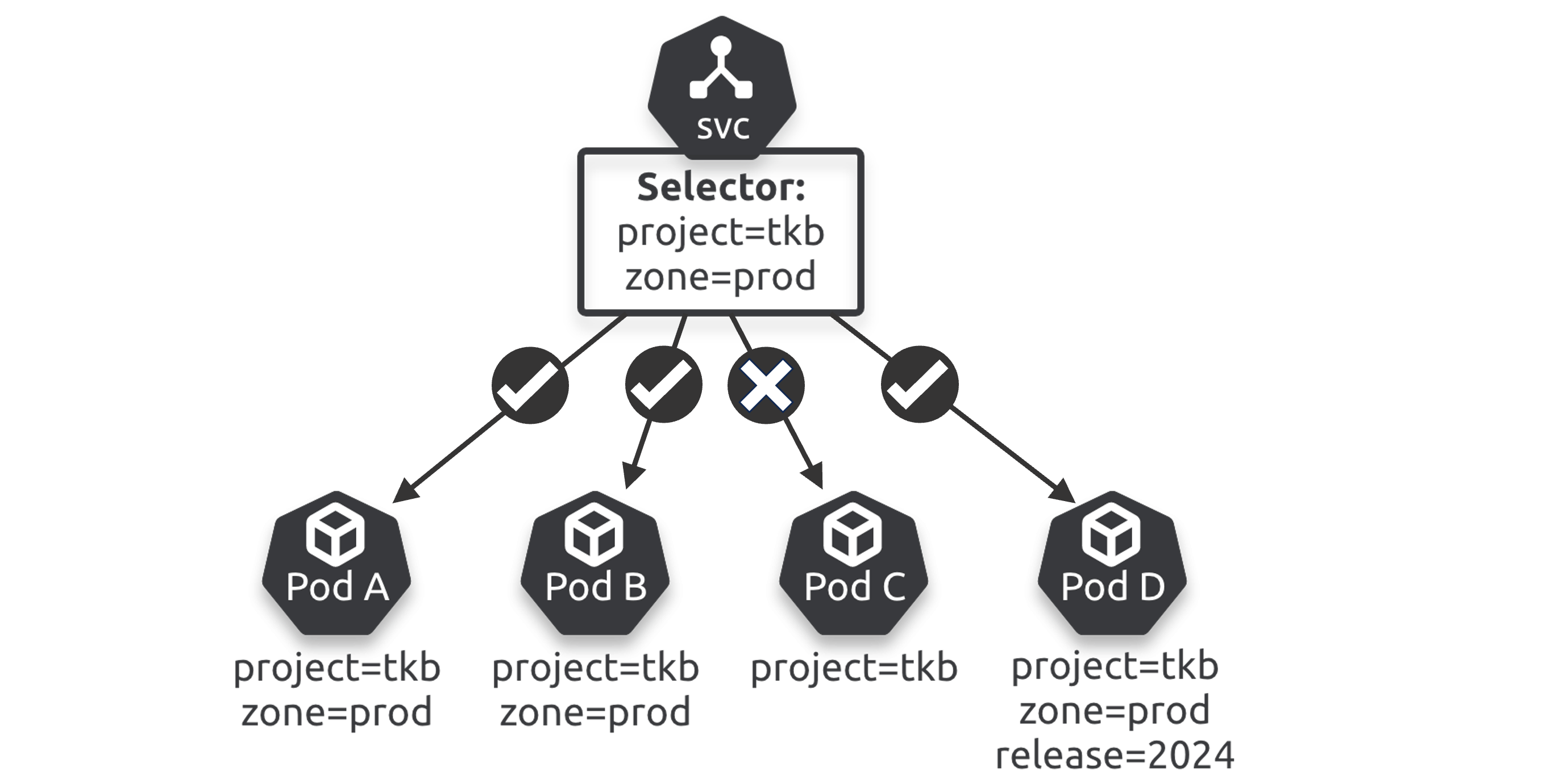

Labels & Loose Coupling

apiVersion: apps/v1
kind: Deployment
metadata:
  name: tkb-2024
spec:
  replicas: 10
  template:
    metadata:
      labels:
        project: tkb        ----┐  Create Pods
        zone: prod          ----┘  with these labels
    spec:
      containers:
---
apiVersion: v1
kind: Service
metadata:
  name: tkb
spec:
  ports:
  - port: 8080
  selector:
    project: tkb            ----┐ Send to Pods
    zone: prod              ----┘ with these labels

Commands

kubectl expose deployment svc-test --type=LoadBalancer

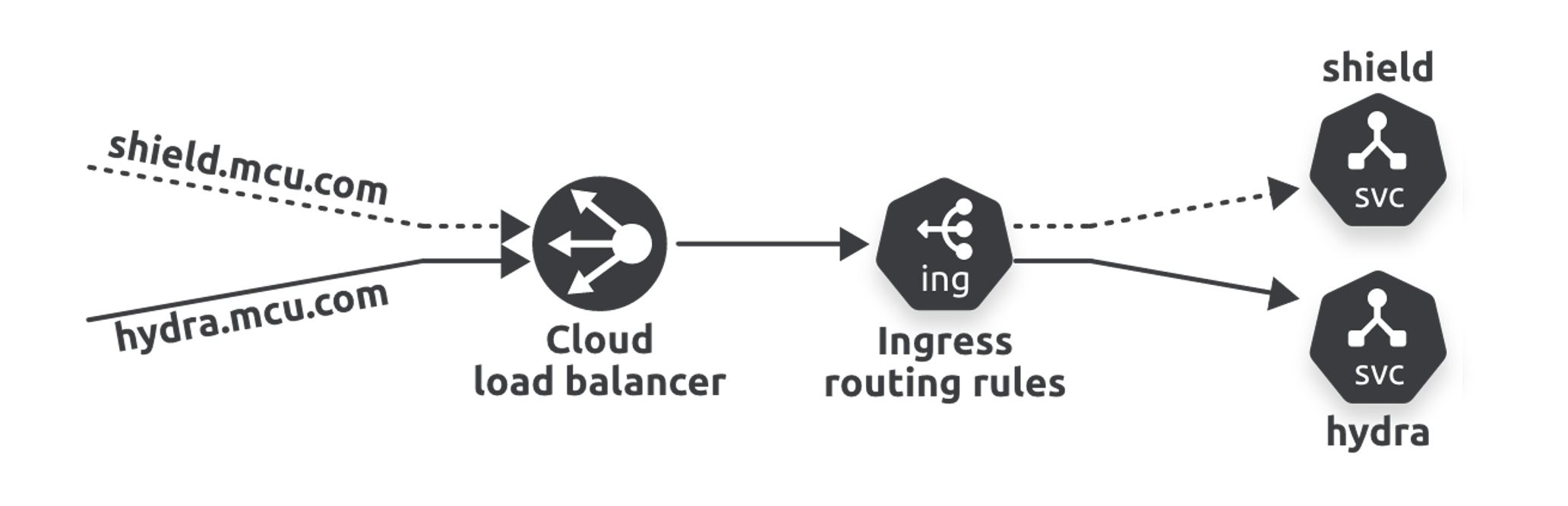

Ingress

• Load balancers read traffic at L4 (ports)
• Ingress reads traffic at L7 (HTTP/Application)

Storage

CSI - driver/plugin for the storage backend (AWS, local disk, etc.)
StorageClass (SC) - template for storage configuration
PersistentVolumeClaim (PVC) - request for storage from an SC
PersistentVolume (PV) - the actual storage created to fulfill the PVC

PVC requests → SC provisions → PV is created → Pod mounts it

Commands

kubectl get pv
kubectl get pvc
kubectl get sc

ConfigMaps

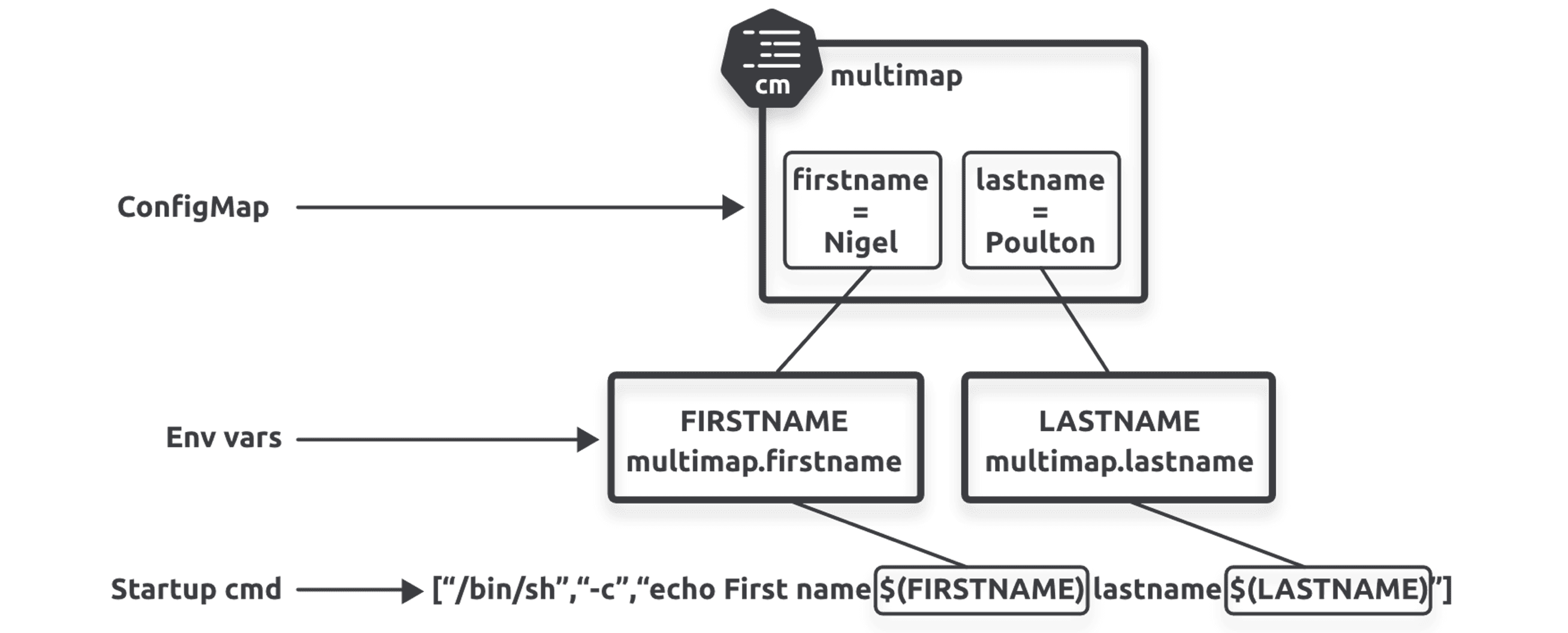

Three ways to inject ConfigMap data into containers:

• Environment variables - only injected at container creation
• Startup command arguments - only injected at container creation
• Volume files - automatically pushes updates to live containers

spec:
  containers:
    - name: args1
      image: busybox
      command: [ "/bin/sh", "-c", "echo First name $(FIRSTNAME) last name $(LASTNAME)", "wait" ]
      env:
        - name: FIRSTNAME
          valueFrom:
            configMapKeyRef:
              name: multimap
              key: firstname
        - name: LASTNAME
          valueFrom:
            configMapKeyRef:
              name: multimap
              key: lastname

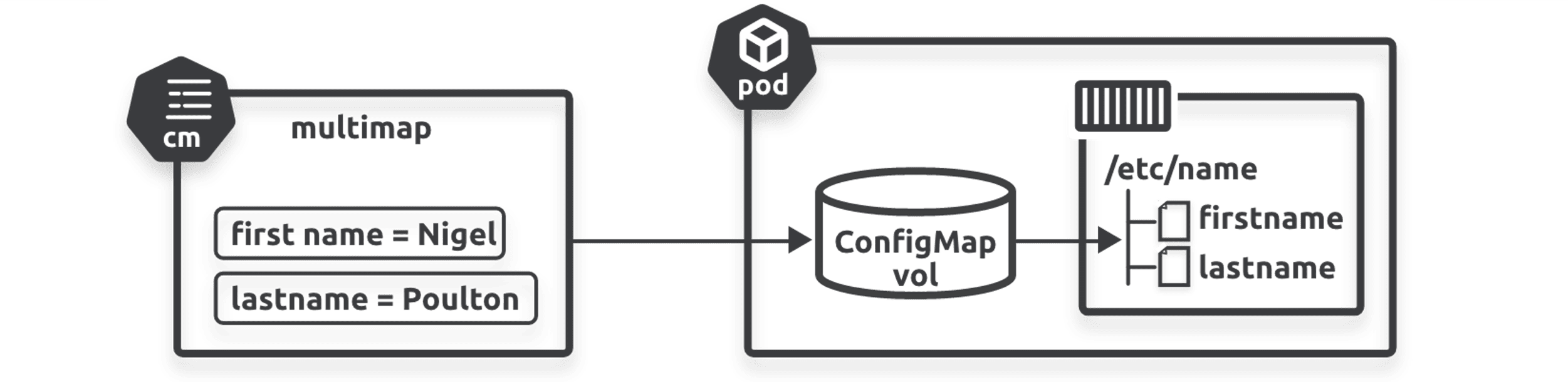

With Volumes

Volumes allow live config updates without restarting the container.

apiVersion: vcallout-Note1
kind: Pod
metadata:
  name: cmvol
spec:
  volumes:
    - name: volmap
      configMap:
        name: multimap
  containers:
    - name: ctr
      image: nginx
      volumeMounts:
        - name: volmap
          mountPath: /etc/name

Commands

kubectl get cm

kubectl create configmap testmap1 \\
  --from-literal shortname=SAFC \\
  --from-literal longname="Sunderland Association Football Club"

kubectl create cm testmap2 --from-file cmfile.txt

StatefulSets

Deployments are for stateless apps - Pods are interchangeable with no stable identity or storage.

StatefulSets are for stateful apps, providing:

• Stable Pod names and hostnames
• One-to-one persistent volume mapping
• Ordered deployment and scaling

kubectl scale sts tkb-sts --replicas=0
kubectl delete sts tkb-sts

Headless Services

A headless Service has no ClusterIP - used to access Pods directly by DNS name, typically with StatefulSets.

apiVersion: v1
kind: Service
metadata:
  name: dullahan
  labels:
    app: web
spec:
  ports:
  - port: 80
    name: web
  clusterIP: None
  selector:
    app: web

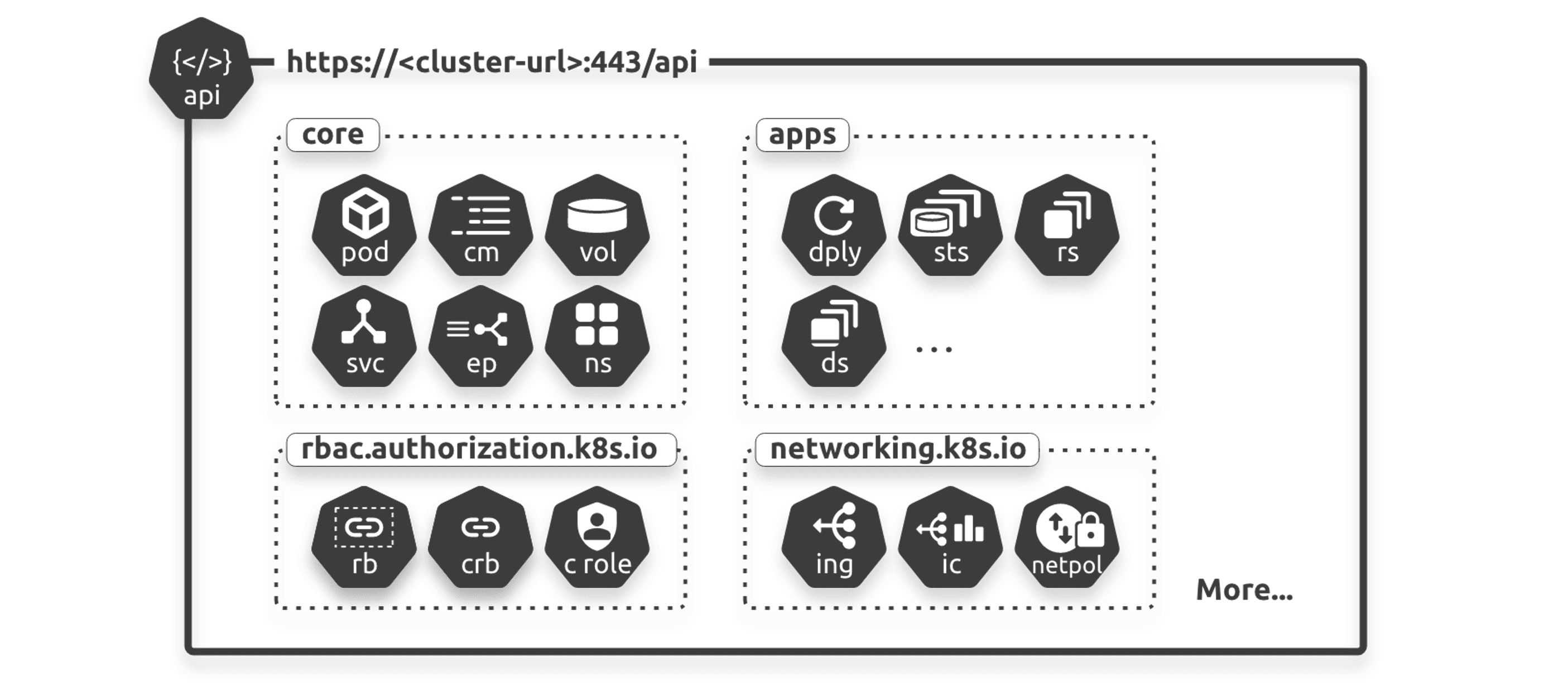

Kubernetes API

Two API groups: Core and Named

Core - original objects (Pods, Nodes, Services, Secrets) at api/*

Named - later additions at /apis/{group-name}/{version}/

Commands

kubectl api-resources   # all resources, short names and kinds
kubectl api-versions
kubectl cluster-info
kubectl get pods --watch
