SSH

Developed in 1999 by OpenBSD. It’s a software suite with serveral commands:

ssh # client
sshd # server daemon

ssh-keygen # generate public/private key pairs
ssh-add    # managing authentication keys
ssh-agent  # daemon that holds keys

ssh/sshd

Public key authentication is the recommended authentication method.

Config

Files

/etc/ssh
# Client and server 0755
ssh_config          0644  # site-wide client config
sshd_config         0644  # server config
moduli              0644  # DH key-exchange primes/generators
ssh_import_id       0644  # pull public key from external backend like github
*_key               0600  # host private keys (one per algorithm)
*_key.pub           0644  # matching host public keys

~/.ssh/

~/.ssh/
# Client        0700
config          0600   # per-user client config (Host blocks, overrides)
id_ed25519      0600   # your private key
id_ed25519.pub  0644   # matching public key
known_hosts     0644   # server host keys you've accepted
known_hosts.old 0644   # backup written by ssh-keygen -R

# Server        0700
authorized_keys 0600   # public keys allowed to log in as this user

ssh client

ssh [options] [username@]host [command]
ssh k3s.lan "df -h"

config is read in the priority order below

  1. cli-flags
  2. ~/.ssh/config
  3. /etc/ssh/ssh_config

Config options

~/.ssh/config
Host sc1
    Hostname k3s.lan
    User mat
    Port 22
    ForwardAgent yes
    StrictHostKeyChecking accept-new
    IdentityFile ~/.ssh/id_k3s
    IdentitiesOnly yes                # only send this key rather than trying all default names

Host 192.168.* # globbed
    User mat

You can also send config via the cli with -o (options)

bash
# accept-new = only flag if key changed otherwise don't prompt
ssh -o StrictHostKeyChecking=accept-new server.admin.com
Connection Mulitiplexing

ControlMaster enabled multiplexing, the first connection to a host creates a socket that can be reused.

  • Each new host creates its own connection (socket), so this is only useful for multiple connections to a single server.

There are 2 situations you will benefit from using the TCP connections:

  1. You’re disconnecting and reconnecting requently. Using ControlPersist Xm if you disconnect for less than Xm you can connect back quicker and cheaper over that same socket.
  2. If you’re setting up multiple concurrent ssh connections to a single host, similar to how Ansible works where each task will be it’s own ssh connection to the same host. All connections will multiplex over the single socket.
Host *
    ControlMaster auto                    # auto create master conn
    ControlPath ~/.ssh/cm_socket/%r@%h:%p # where to create the socket
    ControlPersist 30m                    # keep socket alive for 30m

Public key authentication

bash
ssh-keygen \
  -t ed25519 \              # key type
  -C "mat@laptop-2026" \    # comment/label baked into the .pub
  -f ~/.ssh/id_k3s \        # output filename, requires you to use IdentityFile explicitly
  -N '' \                   # passphrase inline
ssh -i ~/.ssh/id_ecdsa mat@k3s.lan

ssh-keygen prompts for an optional passphrase to encrypt the private key. If you use a passphrase, you must type it to decrypt the key before ssh can read it.

Do this for accounts that have sudo access.

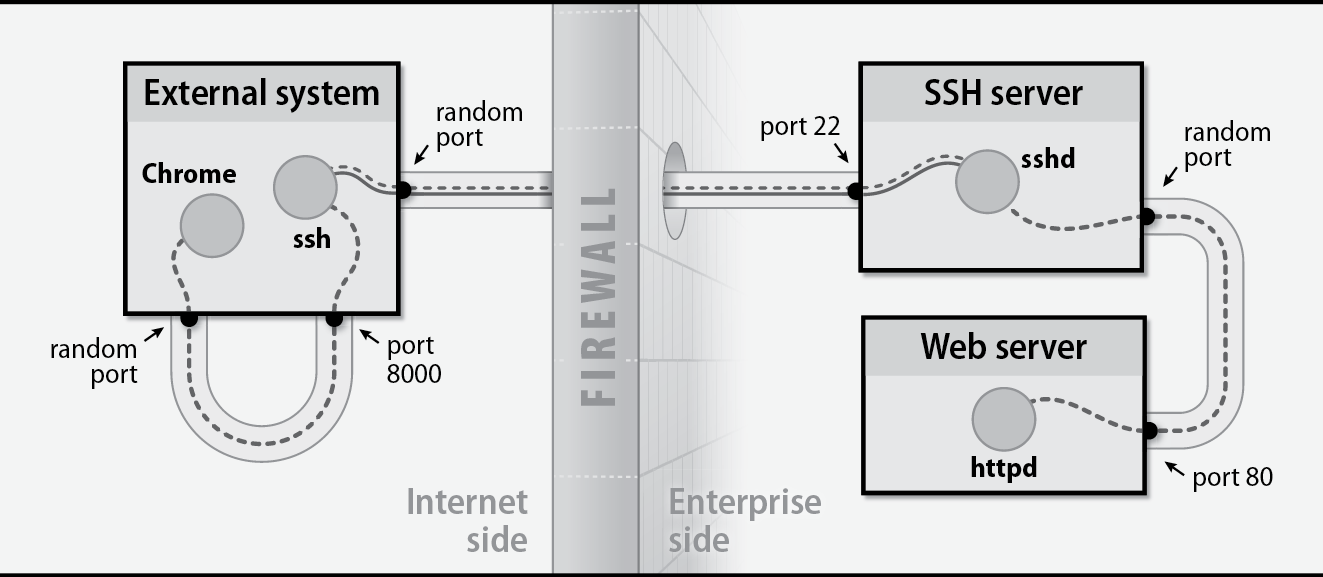

Port fowarding

port-forwarding

  1. ssh into the remote server

    ssh -L 8000:webserver:80 server.admin.com

  2. connect your local machine access 8000 to foward traffic over ssh

ssh-agent / ssh-add

  • ssh-agent is a daemon that caches decrypted private keys in memory.
  • ssh-add the client that talks to the agent.
bash
ssh-add ~/.ssh/id_ed25519 # add a key
# Enter pass phrase to decrypt if needed

ssh-add -l # list active keys (hashed)
ssh-add -L # list active keys full pubkey, can be copied into authorized_keys

ssh-add -d ~/.ssh/id_ed25519 # remove a key
ssh-add -D # remove all

sshd

  • sshd runs as root
  • it forks an unprivileged child process for each connected client with the same permissions as the connecting user

if you make changes to sshd_config send HUP to the parent or reload with sshd for the changes to effect new conneections (existing connections are preserved with previous settings)

sudo kill -HUP $(/var/run/sshd.pid)
systemctl reload ssh
